1. Introduction: The Evolution of Modern Industrial Drilling Rigs

Across the global industrial landscape, the modern drilling rig serves as an indispensable centerpiece of infrastructure development, mineral exploration, geothermal energy extraction, and groundwater access. From deep geological core sampling in remote mountainous regions to heavy-duty rock excavation for urban construction, selecting the precise drilling rig technology directly determines project timelines, operational safety, and overall profitability.

As geological conditions grow increasingly challenging and project schedules tighten, engineering firms and drilling contractors can no longer rely on generic equipment. The demand for specialized machinery—such as the high-speed pneumatic drill rig, the highly adaptable hydraulic drill rig, and the ultra-precise core drill rig—has witnessed exponential growth worldwide.

In this comprehensive industrial guide, we provide an in-depth analysis of heavy-duty drilling rig technologies, examining their operational mechanics, engineering specifications, and field applications. Featuring real-world machinery examples from Hengwang Machinery, a global leader in heavy equipment manufacturing, this guide equips B2B buyers, contractors, and drilling engineers with the technical insights needed to choose the ideal drilling rig for any site requirement.

2. Pneumatic Drill Rigs and DTH Rigs: High-Speed Hard Rock Drilling

When penetrating unyielding hard rock strata such as granite, basalt, quartz, and limestone, traditional rotational drilling methods often suffer from slow penetration rates and excessive bit wear. In these demanding conditions, the pneumatic drill rig, utilizing Down-The-Hole (DTH) pneumatic hammer technology, represents the ultimate engineering solution for rapid hole penetration.

Operational Mechanics of the Pneumatic Drill Rig

A pneumatic drill rig operates by combining rotational torque with high-frequency pneumatic impacts. Compressed air generated by a high-capacity air compressor is routed through the drill pipe directly to the DTH hammer located at the bottom of the hole. The pneumatic piston strikes the drill bit hundreds of times per minute, pulverizing solid rock into fine cuttings, which are simultaneously flushed out of the hole by the exhausting air stream.

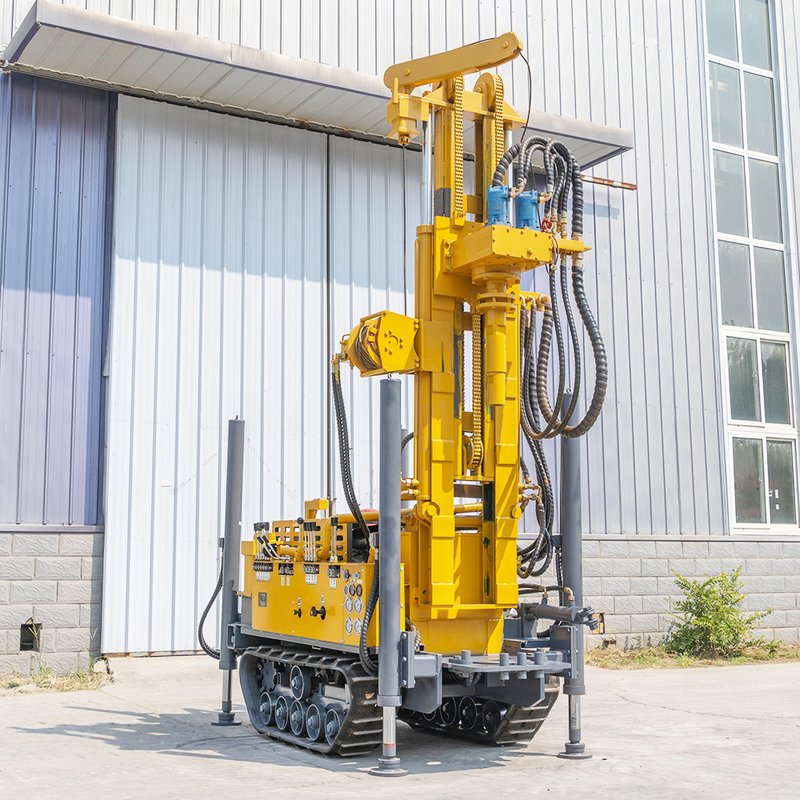

Hengwang Pneumatic Drill Rig Product Showcase

Hengwang offers an extensive fleet of tracked and vehicle-mounted pneumatic drill rig models designed for shallow to deep-bore operations:

• HQZ Series Tracked Pneumatic Drill Rig Models such as the HQZ-160L, HQZ-220L, HQZ-260L, HQZ-320L, and HQZ-500L provide drilling depths ranging from 160 meters to 500 meters with hole diameters spanning 130mm to 325mm. Powered by heavy-duty engines (42kW to 85kW+), these rigs feature rugged steel crawler undercarriages that easily navigate rough off-road terrain.



• HW-S Series High-Efficiency Pneumatic Drill Rig Heavy-duty models including the HW-450S, HW-500S, HW-600S, HW-1000S, and HW-1500S are engineered for deep water well drilling and mining blast hole applications where continuous high-pressure air operation is mandatory.



• HQZ-C Vehicle-Mounted Pneumatic Drill Rig Rigs such as the HQZ220C, HQZ320C, and HQZ600C integrate the full pneumatic drill rig setup onto heavy commercial truck chassis, offering unparalleled highway mobility for rapid deployment across multi-site drilling campaigns.

Primary Applications for the Pneumatic Drill Rig

The high impact frequency of the pneumatic drill rig makes it the premier choice for deep groundwater well drilling, geothermal heat pump borehole creation, quarry blast hole drilling, and open-pit mining operations.

3. Fully Hydraulic Core Drill Rigs: Precision Geological Exploration

In mineral exploration, geological mapping, and geotechnical surveys, retrieving intact rock samples from thousands of meters beneath the surface is vital. Here, the specialized core drill rig equipped with wireline rope coring technology plays a crucial role.

The Science of Wireline Rope Coring Drilling

Unlike standard destructive drilling that pulverizes rock into dust, a wireline core drill rig utilizes a hollow diamond core bit that cuts an intact cylindrical rock core. Using wireline rope coring technology, the inner tube containing the core sample is hoisted to the surface through the drill string via a wireline cable. This eliminates the labor-intensive need to pull out the entire drill string, saving hundreds of hours on deep exploration projects.

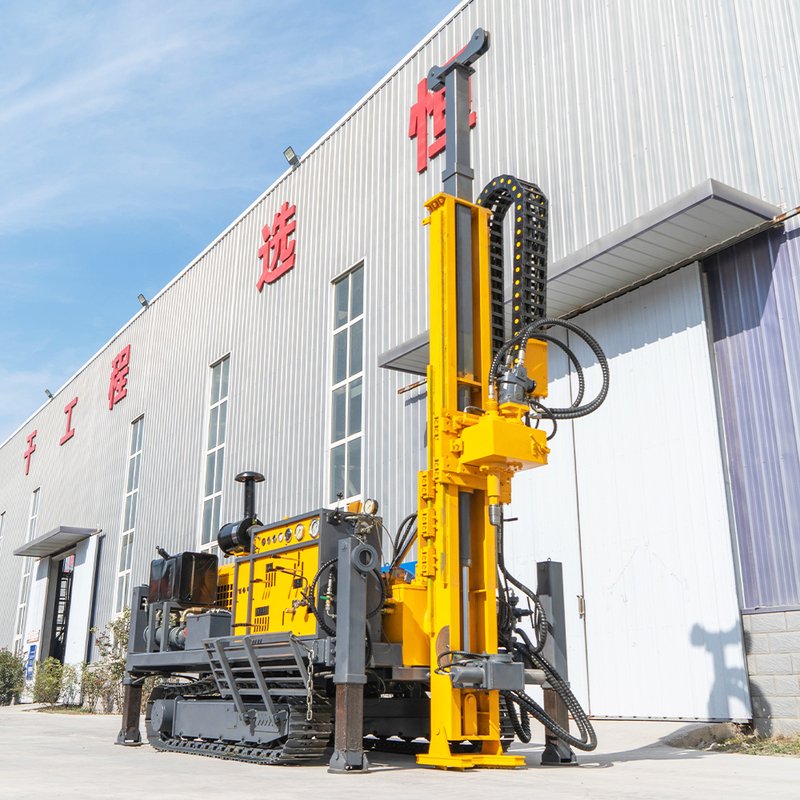

Hengwang Fully Hydraulic Core Drill Rig Series

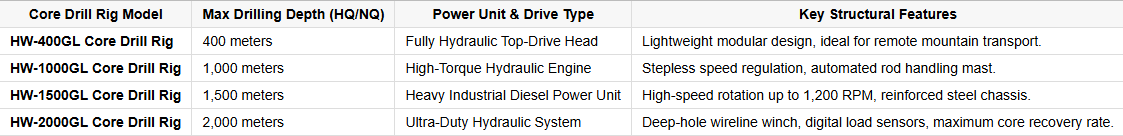

Hengwang's HW-GL Fully Hydraulic Rope Coring Drill Rig series represents state-of-the-art technological advancement in deep exploration machinery:

Critical Advantages of the Fully Hydraulic Core Drill Rig

1. Precision Speed & Feed Control: Stepless hydraulic speed control allows operators to fine-tune rotation speed and weight-on-bit (WOB) according to fragile or broken rock formations.
2. High Core Recovery Rate: Smooth hydraulic feed prevents vibration, ensuring near 100% core sample integrity.
3. Deep Hole Capability: Capable of reaching depths up to 2,000 meters, making the core drill rig essential for metallic and non-metallic mineral reserve evaluation.

4. Hydraulic Drill Rigs: Versatile Mud and Air Dual-Mode Systems

For general foundation engineering, agricultural water access, and mixed-strata soil drilling, contractors require a versatile hydraulic drill rig that seamlessly adapts to varying ground conditions.

Engineering Features of the Modern Hydraulic Drill Rig

A modern hydraulic drill rig relies on a centralized hydraulic pump station driven by a diesel engine to power all main functions: mast erection, rotary head torque, winch lifting, and crawler travel. This centralized hydraulic architecture provides smooth power distribution and exceptional fuel efficiency.

Hengwang Hydraulic Drill Rig Fleet Showcase

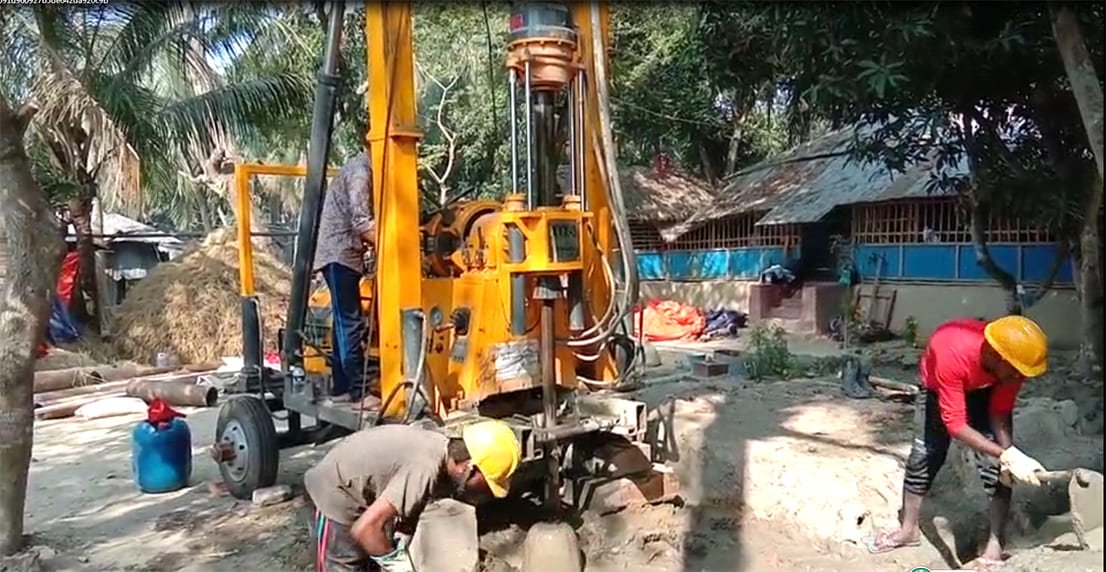

• HW-L Series Hydraulic Drill Rig Models such as the HW-160L and HW-190L are compact, highly mobile hydraulic rigs designed for small-to-medium water wells, soil sampling, and residential borehole projects.


• HWDL Mud/Air Dual-Mode Hydraulic Drill Rig Heavy-duty dual-system models like the HWDL-220, HWDL-280, and HWDL-350 allow operators to switch effortlessly between mud circulation drilling (for loose sand, soil, and clay) and air compression DTH drilling (for solid rock layers).

Why Choose a Mud/Air Dual-Mode Hydraulic Drill Rig?

In complex geological formations where topsoil consists of loose clay and subsoil transitions into hard granite, a single-function machine will stall. The dual-mode hydraulic drill rig allows contractors to drill through mud layers using rotary mud pumps and then immediately attach an air compressor to power a DTH hammer through rock—all on the same hydraulic drill rig platform.

5. Specialized Rigs: Anchoring, Reverse Circulation, and Truck-Mounted Rigs

Beyond standard water well and exploration machinery, specialized civil engineering projects require custom-built drilling rig configurations.

Anchoring Drill Rigs for Slope Support and Foundation Retaining

In slope stabilization, landslide prevention, and deep foundation pit retention, an anchoring drill rig is essential. Hengwang's anchor drilling rigseries features multi-articulated hydraulic booms that can adjust drilling angles across 360 degrees, allowing precise horizontal and diagonal anchor hole drilling along steep rock walls and tunnel crowns.

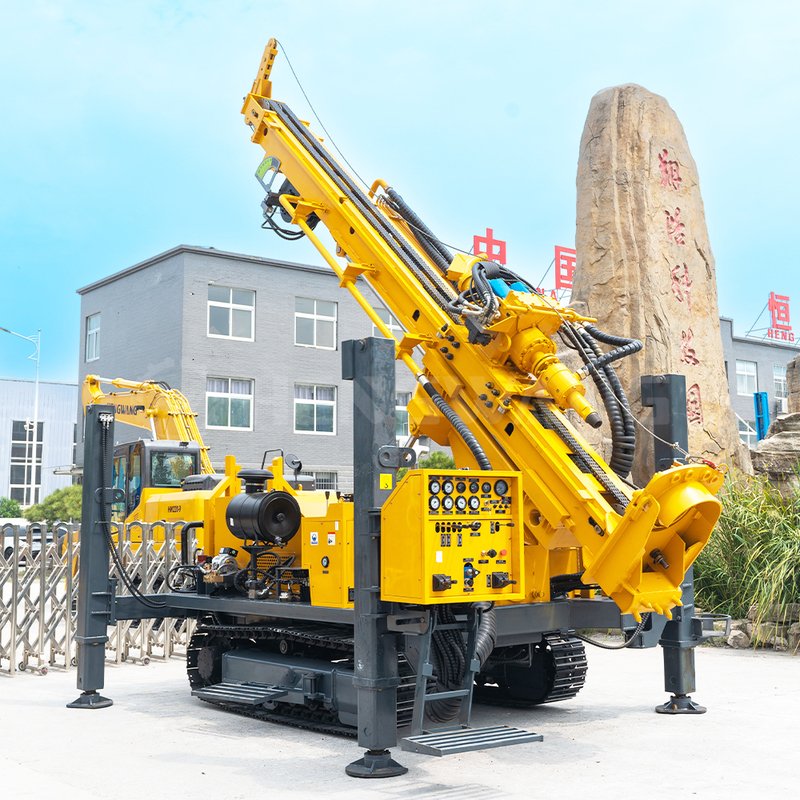

Big Diameter Reverse Circulation Drill Rigs (HF Series)

When large-diameter holes (500mm to 1500mm+) are required for heavy structural bridge piers or industrial drainage wells, reverse circulation is necessary. Hengwang's HF-150, HF-200, HF-250, and HF-400L Reverse Circulation Drill Rigs utilize vacuum suction or compressed air to pull heavy rock cuttings up through the inside of the drill pipe, ensuring clean hole walls and rapid large-diameter.

Truck-Mounted Drill Rigs for Rapid Regional Mobility

For municipal emergency water relief, drought intervention, and widespread agricultural drilling programs, crawler movement is too slow. Vehicle-mounted models like the HQZ320C and HQZ600C combine heavy truck chassis with full pneumatic drill rig capabilities, allowing operators to travel at highway speeds between job sites hundreds of kilometers apart.

6. B2B Drilling Rig Procurement Matrix: A Complete Buyer's Guide

Purchasing a commercial drilling rig involves significant capital investment. B2B buyers and project managers should evaluate the following core parameters before selecting a drilling rig supplier:

•  Geological Compatibility (Geology First)

  Analyze the ground strata of your target work zones. Soft clay, silt, and unconsolidated sands require a mud-pump equipped hydraulic drill rig or reverse circulation rig. Hard, unyielding rock formations mandate a high-pressure pneumatic drill rig paired with an appropriate air compressor. Mineral sampling requires a specialized core drill rig.

• Drilling Depth & Diameter Power Head Margins

  Select a drilling rig with a rated depth capacity 15% to 20% greater than your deepest planned hole. Operating a 300m-rated pneumatic drill rig continuously at 300 meters causes premature hydraulic component wear. Maintaining reserve hoisting and torque power extends equipment service life.

• Chassis Type: Tracked Crawlers vs. Truck-Mounted Rigs

  Tracked crawler drilling rig models provide superior traction on mud, steep inclines, and off-road job sites. Truck-mounted drilling rig models are ideal for contractors performing multiple short-duration residential wells across a wide geographic territory.

• Total Cost of Ownership (TCO) & Wear Parts Ecosystem

• Evaluate diesel fuel consumption, hydraulic fluid capacities, and the availability of replacement wear items (drill rods, drill bits, DTH hammers, hydraulic seals). Partnering directly with an established manufacturer like Hengwang Machinery—offering 12-month standard warranties, quick-ship spare parts, and direct factory support—minimizes costly job site downtime.

7. Conclusion: Partnering with Hengwang Machinery for Superior Drilling Excellence

Whether you are launching a deep mineral exploration initiative with a high-precision core drill rig, executing large-scale groundwater projects with a heavy-duty pneumatic drill rig, or completing foundation engineering with a multi-purpose hydraulic drill rig, having reliable, high-performance machinery is the foundation of operational success.

Hengwang Machinery continues to set global industry standards by manufacturing robust, versatile, and highly cost-effective drilling rig solutions. Backed by rigorous quality control, ISO/CE certifications, and comprehensive international aftermarket support, Hengwang delivers equipment built to conquer the toughest geological challenges on Earth.

Ready to upgrade your drilling fleet with factory-direct equipment?
 Explore Hengwang’s full lineup of pneumatic drill rigs, hydraulic drill rigs, core drill rigs, and anchoring rigs today by visiting Hengwang Drilling Rig Division to request a customized quotation!
